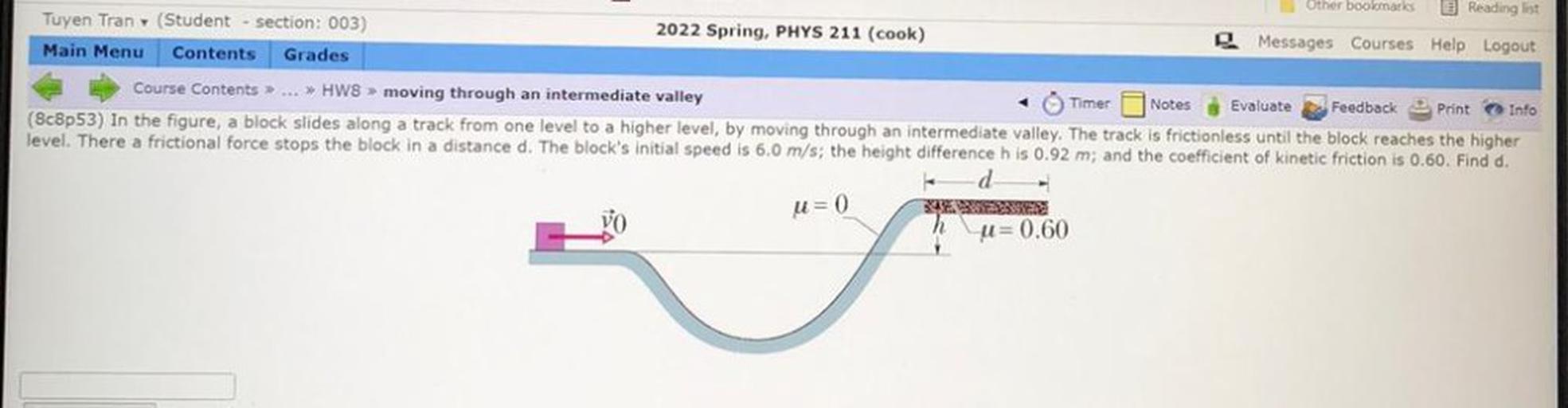

(8c8p53) In the figure, a block slides along a track from one level to a higher level, by moving through an intermediate valley. The track is frictionless until the block reaches the higher
level. There a frictional force stops the block in a distance d. The block's initial speed is 6.0 m/s; the height difference h is 0.92 m; and the coefficient of kinetic friction is 0.60. Find d.
d
u=0
u=0.60
