Question:

You have an RC Circuit - a Resistor and Capacitor (in series) hooked up to an ideal battery. The capacitor is initially uncharge

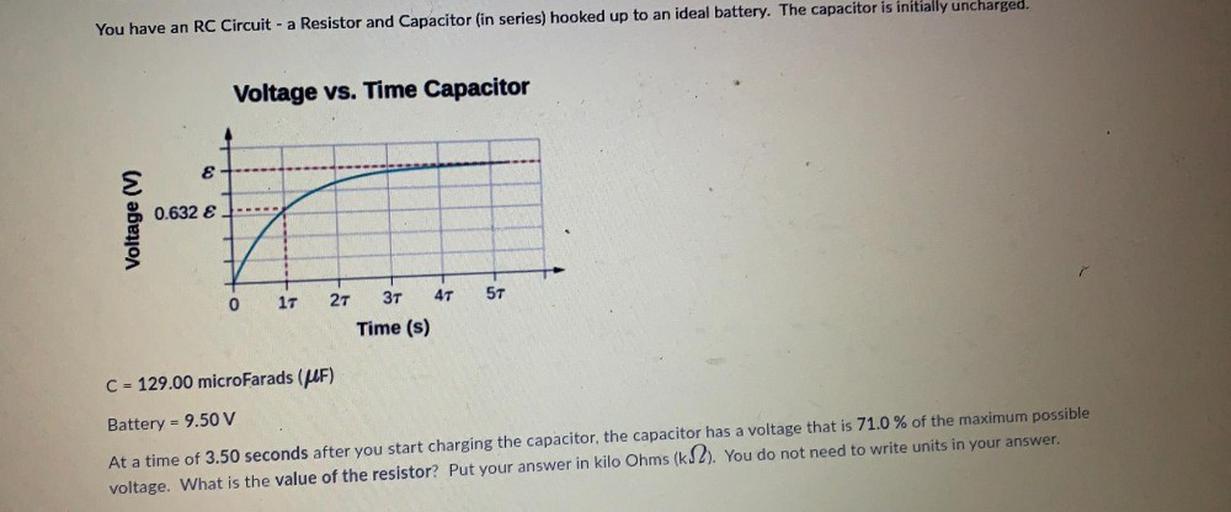

You have an RC Circuit - a Resistor and Capacitor (in series) hooked up to an ideal battery. The capacitor is initially uncharged. Voltage vs. Time Capacitor E 0.632 € Voltage (V) 7 57 0 17 27 3T 4T Time (s) C = 129.00 microFarads (per) Battery = 9.50 V At a time of 3.50 seconds after you start charging the capacitor, the capacitor has a voltage that is 71.0% of the maximum possible voltage. What is the value of the resistor? Put your answer in kilo Ohms (k.S2). You do not need to write units in your answer.

You have an RC Circuit - a Resistor and Capacitor (in series) hooked up to an ideal battery. The capacitor is initially uncharged. Voltage vs. Time Capacitor E 0.632 € Voltage (V) 7 57 0 17 27 3T 4T Time (s) C = 129.00 microFarads (per) Battery = 9.50 V At a time of 3.50 seconds after you start charging the capacitor, the capacitor has a voltage that is 71.0% of the maximum possible voltage. What is the value of the resistor? Put your answer in kilo Ohms (k.S2). You do not need to write units in your answer.
