Question:

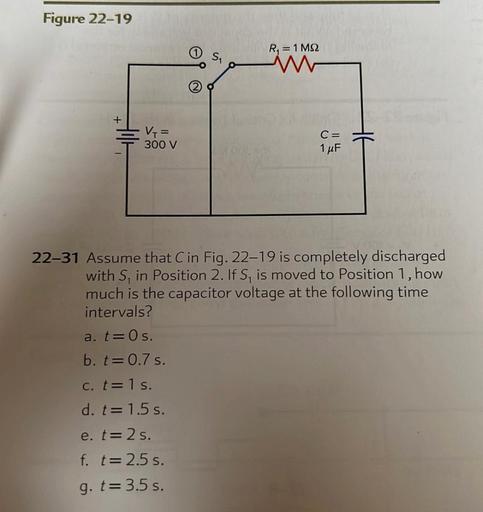

Figure 22-19 R = 1 M2 + V = 300 V C= 1 uF 22-31 Assume that Cin Fig. 22–19 is completely discharged with S, in Position 2. If S,

Figure 22-19 R = 1 M2 + V = 300 V C= 1 uF 22-31 Assume that Cin Fig. 22–19 is completely discharged with S, in Position 2. If S, is moved to Position 1, how much is the capacitor voltage at the following time intervals? a. t=0 s. b. t=0.7 s. c. t=1 s. d. t=1.5 s. e. t=2s. f. t= 2.5 s. g. t= 3.5 s.
