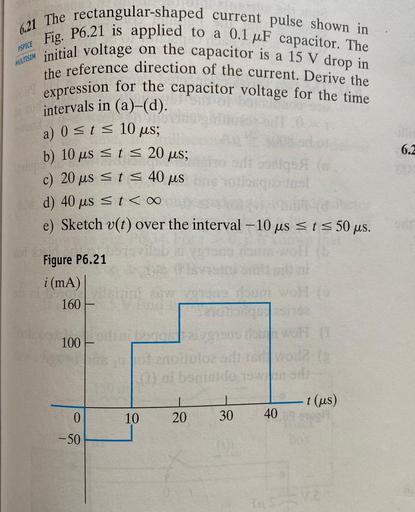

ASPICE MULTISIM 6.21 The rectangular-shaped current pulse shown in initial voltage on the capacitor is a 15 V drop in Fig. P6.21

ASPICE
MULTISIM
6.21 The rectangular-shaped current pulse shown in
initial voltage on the capacitor is a 15 V drop in
Fig. P6.21 is applied to a 0.1 uF capacitor. The
the reference direction of the current. Derive the
expression for the capacitor voltage for the time
intervals in (a)–(d).
a) 0 st = 10 us;
b) 10 us st = 20 us;
ad og
c) 20 us <ts 40 us
otioneel
d) 40 us <t <
e) Sketch v(t) over the interval - 10 us st s 50 us.
6.2
Figure P6.21
i (mA)
160
100
onoluloze
al boniside 1
-t (us)
I
20
0
10
30
40
-50
