Question:

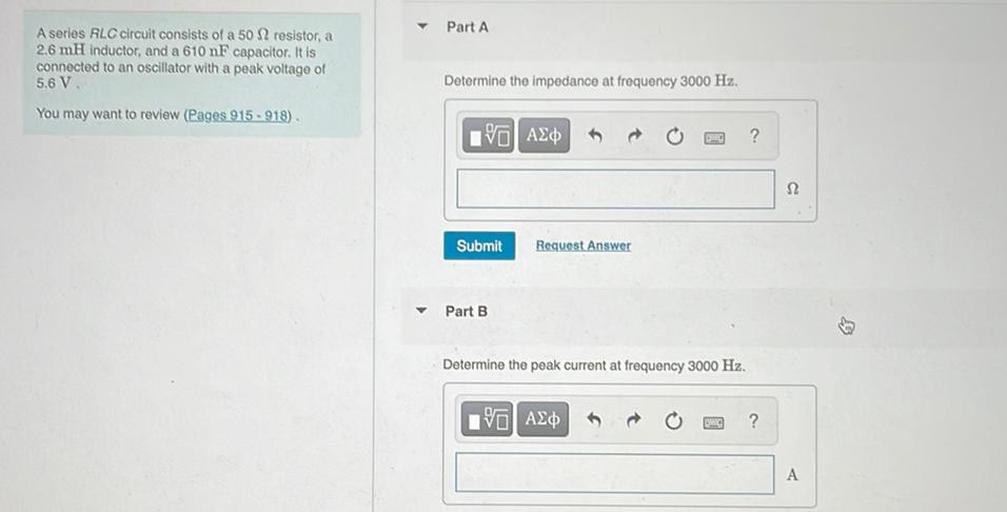

Part A A series RLC circuit consists of a 502 resistor, a 2.6 mH inductor, and a 610 nF capacitor. It is connected to an oscilla

Part A
A series RLC circuit consists of a 502 resistor, a
2.6 mH inductor, and a 610 nF capacitor. It is
connected to an oscillator with a peak voltage of
5.6 V
Determine the impedance at frequency 3000 Hz.
You may want to review (Pages 915 - 918).
O A20
?
12
Submit
Request Answer
Part B
Determine the peak current at frequency 3000 Hz.
9 A2
?
A
